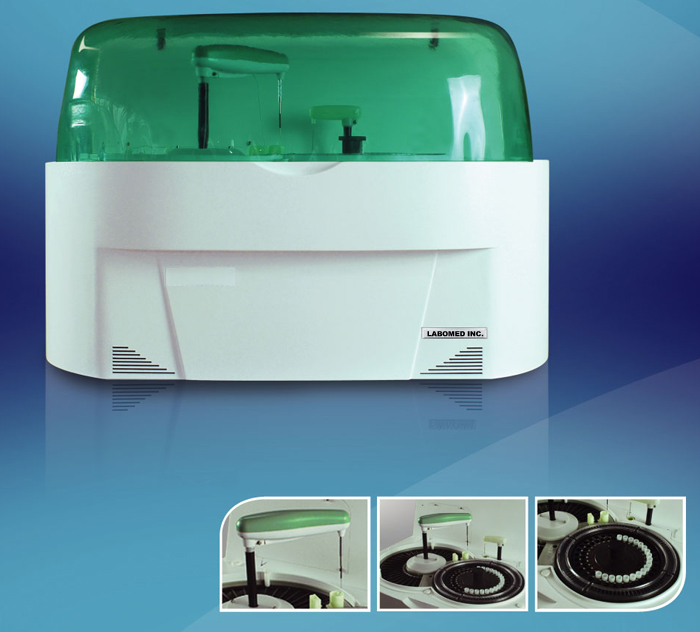

Fully Automatic Biochemistry Analyzer
FACA 200

Labomed introduces an automatic biochemistry analyzer with varying testing capacities.

There are two different systems:

  • one, the flowcell system Model FACA-200 performs 140 tests, the FACA-201 performs 250 tests, and the FACA-201/ELE performs 450 tests;
  • and the other system, the biochemistry analyzer Model FACA-301 and 301/ELE performs 300 tests, and the Model FACA-401 and 401/ELE performs 600 tests.

Labomed, Inc. is certified by ISO 9001-2000, has CE Conformity and is FDA Licensed.


  • Batch analyzer
  • Insert STAT sample at any time during test
  • Online display analyse state, giving immediate analysis information
  • Intelligent multi-task software based on WinXP/Win2000
  • User-friendly software in English, French, Spanish, Russian versions, and other language software on request
  • Perfect quality control function with Levy-Jennings chart and Westguard analysis available
  • Automatic Flow cell washing and probe washing systems between each test to effectively minimize carry-over
  • Auto-check and auto-alarm to ensure the analyzer in good condition
  • New long life pump, no tubing wearing problem any more
  • Less service and maintenance needed

Technical Specifications

Throughput: 140 tests per hour
Test Methods: End point, Kinetic, Fixed time, Bi-chromatic, Multi-standard, Two-step end-point, and more
Calibration: Linear or nonlinear with 1-6 standards calibration
System Calibration: Deduct reagent blank or kinetic blank automatically
Sample Position: 64 positions, including sample, calibrator/standard, control and stat
Sample Volume: 1~100 uL, 0.1 uL/step
Reagent Position: 30 reagent positions with refrigeration
Reagent Volume: 1~999 uL, 0.1 uL/step
Sample Probe: With liquid detection and crash-protect function
Reaction Tray: 96 reaction cuvettes
Flow Cell: 32 uL automatically washing
Optical System: 6V/10W halogen lamp
7 high quality narrow band filters and 2 more filter positions
Photometric measuring range: 0-3.0 O.D
Diluter: 1000 uL, 0.1 uL/step
Temperature: 37°+0.1C
Storage Capacity: memory of more than 200 programs and one million test results
External Devices
(on request)
Pentium 4 PC, printer, monitor
Power Supply AC 110/220V ±-10%, 50/60Hz ± 1Hz
Interface USB 2.0
Dimension 60cm x 50cm x 41cm
