Semi- Automatic Clinical Chemistry Analyzer

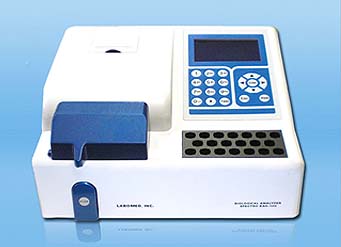

Analyzer BAS-100



BAS-100 is a new concept designed clinical chemistry analyzing system for biochemical research  and clinical diagnostics: Powerful data process function makes it easy to perform data management and statistics: report may be in single test or with completed patient data, which will be convenient for clinical diagnostics. BAS-100 includes a suction pump system.

This semi automatic biochemistry analyzer can measure all blood elements and print on built in printer as indicated in the features section.
BAS-100 has a built in printer and flow through system to use up to 32ul and incubating system for 25-30-37o for kinetic test.


Labomed, Inc. is certified by ISO 9001-2000, has CE Conformity and is FDA Licensed.


Features

Photometric scanning of Spectrum, Analysis in multiple longitude of wave and kinetics

Diagnosis of Operation

Automatic Calibration

System of aspiration of sample (Pale of flow, Aspiration System, Faslk of Residuals, Tubes, Connectors, Etc)

2 Reserve halogen Lamp included

4 Rolls of Printer Paper included

Cable and Software connection to PC included


Top of the Page

Technical Specifications

Methods: End point, two points, multi standard, kinetics, bichromatic, serum blank

wavelength: From 300-800nm. free to choose.

wavelength Precision: +- 1.0nm.

Wave of band ghastly: 5nm.

Scanning Speed: 1000nm/min.

Items: store 200 items, which can increase, modify and delete

Reaction volume: 500ul

Flow through cell: 32ul

Temperature Control System: 25°C, 30 °C, 37°C controlled by Peltier element

Optical system: interferential filters,340,405,492,510,546,578,620( can increase to 9)

Light source: 6V 10W halogen lamp

Photometric range: 0-3-3.0ABS

Photometric approach: 0.003A.

Absorbance Landslide: 0.002A

Printer: Incorporated.

Display: large LCD screen with back light

Printer: built-in stylus/thermal printer

Serial output: RS-232 standard

Power supply: 220V 50Hz 150VA and 110V. 50/60Hz.

Dimension: 390*370*180mm



Top of the Page

Testing List

BAS-100 will measure the following elements at blood test:

T. BILI
D. BILI
TP
ALB
Lactic Acid
LP (a)
CHE
Fe
LgM

R-GT/GGT
ALP/AKP
UREA
CREA
ALT/GPT
AST/GOT
LA
Cu
LgA



CHO
TG
CK
LDH
UA
GLU
TBA
Zn
and drug toxicity

Ca
CL
P
C
A-HBDH
AMY
ADA
C3

APOB-IB
APOB
CK-MB
ASO
CO2
LOL-C
HS-CRP
C4
CHE
CREA
Mg
AFU
FMN
HDL-C
PA
LgC
