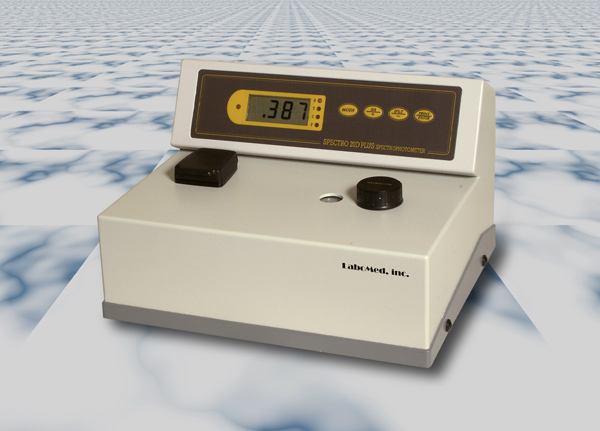

Spectro 20D
Plus RS-232





Spectro 20D Plus RS-232C is a traditional analytical device used in small and educational laboratories.  This spectrophotometer delivers enhanced ease-of-use, precision and accuracy resulting in time and cost savings, as well as unprecedented confidence in test results. Spectro 20D Plus RS-232C has spectral bandwidth of 5.0 nm.  This instrument has a single cell holder for test tubes and two adapters for 10 x 10 mm cells.  Spectro 20D Plus RS-232C is lightweight and compact with a continuous wavelength from 320 to 1000nm.  Equipped with a microprocessor, this instrument is ideal for small laboratories and educational institutions. Spectro 20D Plus RS-232C offers ease of use and reliability which can be used in various applications. Spectro 20D Plus RS-232C can be used extensively for qualitative and quantitative analysis.

Spectro 20D Plus RS-232C is a versatile digital spectrophotometer with a built-in RS-232C port permits the instrument to be linked to a computer and a printer to display the photometric and spectral data on the PC monitor.  This interface provides easy communication between the spectrophotometer and the Window based PC.

Spectro 20D Plus RS-232C utilizes soft keys for user-friendliness; with buttons to access settings such as absorption, transmission, concentration and factor, adjusting 0A and 100%T.  Spectro 20D Plus RS-232C is able to send data to the computer or print directly from the Spectro to an external printer.

This Spectro can be used by itself or linked to a PC.

Labomed, Inc. is certified by
ISO 9001-2000, has CE Conformity and is FDA Licensed.



Features

Top of the Page

  • Microprocessor controlled.

  • Large Digital LCD Display.

  • Auto transmission, absorption, concentration and factor.

  • Silicon Photodiode detector

  • It can use square or round cells.

  • Interface RS232 to link to a computer.

  • Wide continuous wavelength range.

  • Built in stray light filter.

  • 1200 /mm. grating mirror.

  • Computer System is optional (NOT INCLUDED).

  • Can use 13mm. test tube.



Included Accessories

Top of the Page

  • 2 adaptors for 10x10 mm. square cells

  • 2 optical glass cells 10x10 mm.

  • Instruction Manual.

  • 1 Zero absorption cell.

Optional Accessories

  • Set of 2 performance testing filters (1 "E filter" for photometric accuracy test
    and 1 didymium filter for wavelength accuracy test)

  • External printer

  • RS232 interface cable

  • Software for Windows 95/98/XP. Includes RS232C cable and operator's
    manual (Specify: Spectro SC)
