Spectro SC
With RS 232

Click here to see brochure

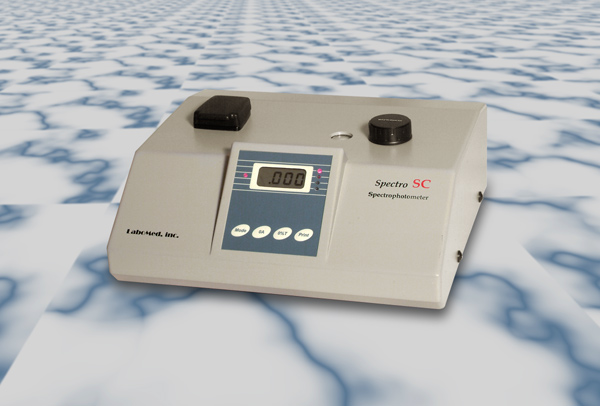

Spectro SC is an economical single cell visible spectrophotometer which is ideal for small laboratories and educational institutions.  This spectrophotometer delivers enhanced ease-of-use, precision and accuracy resulting in time and cost savings, as well as unprecedented confidence in test results.

Spectro Sc is easy to use, affordable, compact and light weight.   It has a continuous wavelength ranging from 320 nm to 1000 nm and the ability to hold both square cells (10 mmx10 mm) and round test tubes.

Spectro SC is rugged, reliable, low cost, and maintenance free.  This instrument simplifies analysis and increases measurement capabilities for routine applications in various fields such as chemistry, biochemistry, agricultural, petrochemistry, environmental protection, science classes, educational laboratories and general analytical industry.

This Spectro can be used by itself or linked to a PC.

Labomed, Inc. is certified by
ISO 9001-2000, has CE Conformity and is FDA Licensed.



Features

Top of the Page

  • Microprocessor controlled.

  • Digital LCD Display.

  • Auto transmission, absorption, concentration and factor.

  • Silicon Diode detector

  • It can use square or round cells.

  • Interface RS232 to link to a computer.

  • Wide continuous wavelength range.

  • Built in stray light filter.

  • 1200 /mm. grating mirror.

  • Computer System is optional (NOT INCLUDED).



Included Accessories

Top of the Page

  • 2 square cells 10 mm x 10 mm.

  • 1 instruction book.

  • 2 square cell holder.

  • 1 Zero absorption cell.

Optional Accessories

  • Set of 2 performance testing filters (1 "E filter" for photometric accuracy test
    and 1 didymium filter for wavelength accuracy test)

  • External printer

  • RS232 interface cable

  • Software for Windows 95/98/XP. Includes RS232C cable and operator's
    manual (Specify: Spectro SC)

Top of the Page

Technical Specifications

Top of the Page
|
Wavelength Range: 330-1000nm.
Spectral bandwidth: 6nm.
Data Processing: Microprocessor
Wavelength Accuracy +- 1nm.
Wavelength Repeatability: +- 1nm.
Optical System Grating, 1200 lines/mm.
Stray Light : <-0.5%T at 340 nm & 400nm.
Display 3.5 LCD
Photometric Range : 0 to 2.5 ABS
0 to 100& T
0 to 1999C (0 to 1999F)
Zero & Blank set Automatic
Photometric Accuracy: +- 1%T
Drift: -<0.003 A/hour after warming up
Detector Silicon Photodiode
Light Source: Tungsten Halogen lamp, 6V 10W
Sample Volume: 0.4ml (minimum)
Sample Container: Round and Square cuvette
Data Output: Analog output, RS 232C interface, Printer (SEIKO dpu-414)
Power Requirements: 110-240V. AC, 50/60Hz., Selected automatically
Dimensions

330 (W)x130 (H)x270 (D) mm.

Net Weight 5.2 kg.
