Spectro UV-VIS Double Beam

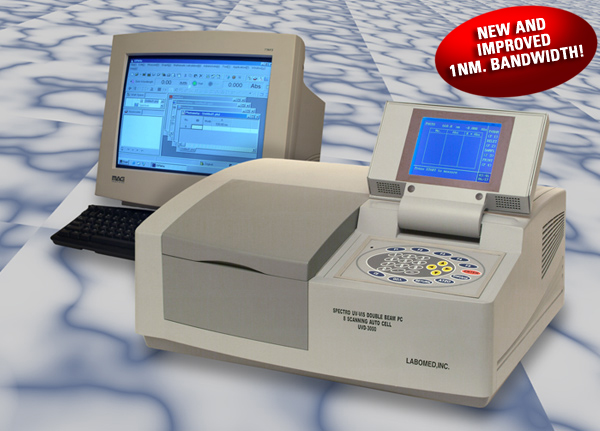

UV-Vis Double PC (Model UVD-2950) is a high performance
UV-Vis double beam automatic scanning spectrophotometer. It
is a two (2) cell spectrophotometer, now with a new and improved bandwidth of 1nm! . Model UVD-2950 spectrophotometer offers high performance,
ease of use and reliability, which can be used in various applications.
Spectrophotometer Model UVD-2950 can be used extensively for
qualitative and quantitative analysis in such fields as pharmaceutical
inspection, clinical analysis, petro-chemistry laboratories,
chemistry and biochemistry laboratories, DNA/RNA analysis as
well as in quality control departments, i.e. environmental control,
water management, food processing, and agriculture.
Spectro UV-Vis Double PC (Model UVD-2950) utilizes a
new optical system design and is microcomputer controlled. With
its focused-beam design, the system provides optimal and reproducible
results for small samples. The sample beam and the reference beam
are provided within the same sampling space which in turn facilitates
wider and longer scan of data providing a more detailed view of the results
in an easy to use environment. This instrument has excellent baseline
stability and high resolution and permits scanning, quantitative analysis,
kinetic spectrophotometric analysis and DNA/RNA analysis through PC control. This
product is capable of processing data, from analytical and spectrum testing.
Spectro UV-Vis Double PC (Model UVD-2950) has a large
LCD screen which displays the menu screen and of course makes the device
user friendly. Additionally, this instrument has a powerful built-in
software which permits the apparatus to be linked to a computer and
a printer to display the photometric and spectral data on the PC monitor.
Labomed, Inc. is certified by ISO 9001-2000, has CE Conformity and is FDA Licensed. Spectro
UV-Vis Double PC (Model UVD-2950) with fixed bandwidth
of 1 nm is a high-performance, reliable, and exceptional value instrument
which is the hallmark of Labomed UV-Vis spectrophotometers.
This Spectro can be used by itself or linked to a PC.
Labomed, Inc. is certified by
ISO 9001-2000, has CE Conformity and is FDA Licensed.
of the Page
Stability: The Double beam monitoring ratio system enhances
1nm fixed bandwidth New! : The Double beam monitoring ratio system enhances
Resolution: The big-caliber light path enhances the
instrument’s energy, reduces its noise and raises its
2 Cell Holder: Spectro UVD-2950 has 2 cell holder
for reference (standard) and sample.
light source: The socket deuterium lamps and tungsten
lamps facilitate light source replacement, simplify maintenance
and reduce operation error.
Display: The large backlit LCD screen displays both
photometric values and spectral curves.
use of Computer Technology: Being computer controlled
with RS-232 interface and working on the Windows platform with
the UV/Win application software.
key components adopt all from the world famous manufacturer,
such as deuterium lamp, silicon photodiode and holographic grating,
which ensures the stabilization and credibility of the Instrument
for extended life.
System is optional (NOT INCLUDED).
Measurement: Measuring transmittance or absorbance at
the current wavelength together with K factor calculations.
Spectrum Scan: Carrying
out scanning of transmittance or absorbance on the selected wavelength
range together with peak-pick module.
Quantitative Determination: Regression
of standard curves and direct determination concentration of samples.
PC Windows Application Software (RS-232
Interface) to link Spectro to computer and printer:
- Photometric Measurement: Measuring
the photometric values at 1-10 wavelengths together with mathematical
calculations according to entered quotations.
- Spectrum Scan: Producing
Wavelength scans within the operating parameters on samples together
with powerful data handling facilities.
Determination: Determination of unknown concentration
with methods of 1-3 wavelength quantitation, together with fitting
of calibration curve of 1st ~ 4th order.
- Kinetics: Recording
curves of changing photometric values of samples against timecourse
at the selected wavelengths together with powerful data handling
- Output: With
the Windows clipboard, the measured data and graphics can be copied
to other applications software for reports.
of the Page
Auto Cell Holder
Optical Glass Cells 10mm.
Quartz Cells 10mm.
Software CD for Windows 98/2000/XP
Software Operation Manual
Spare Tungsten Halogen Lamp
Block Light Cell
Kinetic Test System
Flow Through System
Set of 2 performance testing filters (1 "E filter" for
photometric accuracy test and 1 didymium filter for wavelength accuracy
Peltier constant temperature system (15 - 55 ºC
Sipper flow through system (peristaltic pump and flowcell (Specify:
Spectro UV-Vis Double)
Multi-purpose cell holder 20-30-40-50 Path Length
of the Page
of the Page
|1) Wavelength range:
||190 nm – 1100 nm
|- Spectral bandwidth:
||1.0 nm. New and Improved!
|- Stray Light:
||<0.1%T (220 nm, Nal; 340 NaNo2), >=2.0Abs (KCI, 200nm)
|- Wavelength accuracy:
|- Wavelength Reproducibility:
|2) Photometric System:
||The double-beam monitoring ratio system.
|- Photometric Method:
||Transmittance, absorbance, energy and concentration
|- Photometric Range:
|- Photometric Accuracy:
|- Photometric Reproducibility:
|- Photometric Display:
|- Photometric Noise:
||0.001Abs (500nm, 0Abs 2nm Spectral Bandwidth).
|- Scanning Speed:
|- Baseline flatness:
|0.0015 Abs (190-1100nm)
|- Baseline stability:
||0.0008Abs/h (500nm, 0Abs 2nm Spectral Bandwidth, 2Hr. warm-up)
|- Slew rate of wavelength:
|- Results Printout:
|Printing of measured data by using any Printer with
Parallel Port connection available.
||Compact and standalone spectrophotometer mainframe
|- Light Source:
||Socket Deuterium Lamp and Socket Tungsten Halogen
|- Sample Chamber:
||Liquid Crystal Display (LCD 320 iÀ240 dot
||Touch soft keys.
|- PC Interface:
||PC Interface: RS-232
