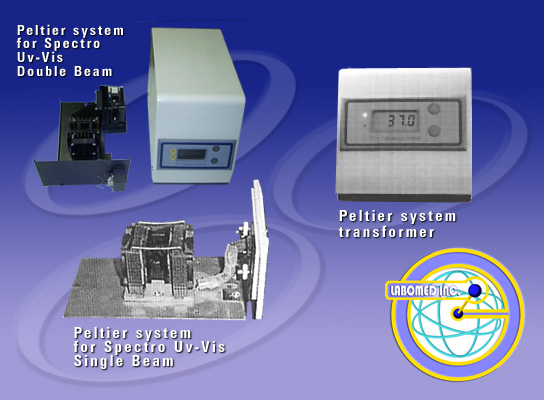

Thermoelectric Controller - Peltier System



Click here to see brochure



Based on Peltier effect, the thermoelectric controller is used to analyze and measure samples under the constant temperature. It is applicable for Spectro UV-VIS-2700 and UVS-2800, Spectro UVD-2950, UVD-3000, UVD-3200, UVD-3400 and UVD-3500.

Basic configuration: a temperature controller and a constant-temperature cell holder.
Types of accessories: (1) single-stage constant-temperature device.
(2) multi-stage constant-temperature device

Technical Specifications

  • Temperature range: 15ºC-55ºC
  • Temperature accuracy: 0.1ºC
  • Temperature resolution: 0.0625ºC
  • Display mode: LCD digital display
  • Adjustment mode: continuous adjustment
  • Power supply: 85VAC-265VAC, 50-60Hz
  • Ambient temperature: 0-40ºC
  • Relative humidity: <80%
